KINETIC FACADE

Look up to see a vertical sea of movement with Ned Kahn’s contribution to the Calgary architectural landscape.




Our Approach

For Kinetic Façade, Heavy worked closely with the artist and client to ensure their bold vision for a mesmerizing exterior feature wall was executed on-time and on-budget.

The Opportunity

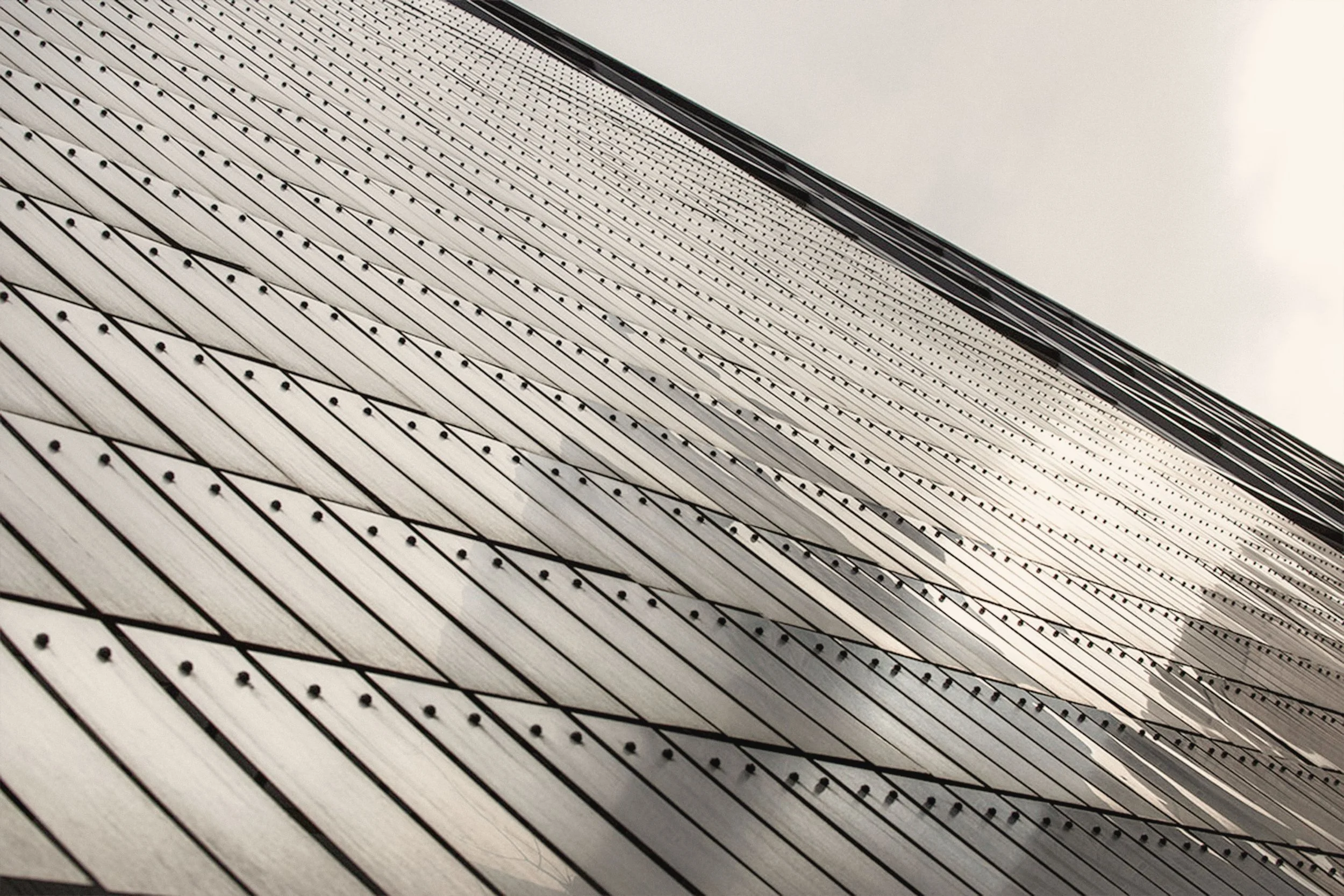

Conceptualized by internationally renowned artist Ned Kahn, the façade consists of 4,080 brushed stainless steel flappers cladding a renovated parkade. Nylon standoffs allow each plate to move independently with the wind for a kinetic effect.

Eight outriggers were attached to each of the existing building’s 5 main columns. A large, galvanized mild steel beam, extending the length of the building along the top parapet, was attached to the top of the outriggers and the building. Clip plates and angle were used to bolt 20 stainless steel frames to the beam. 8,160 custom nylon standoffs secure the 4,080 brushed stainless steel flappers to the frames.


KINETIC FACADE
ARTIST - Ned Kahn
CLIENT — Graham Construction, Northwest Healthcare Properties
PLACE — Calgary, AB, Canada
MATERIALS — Stainless steel, nylon standoffs, galvanized steel framework
